Dimension
270*94.86*67.5mm
Deployment
Pole Mount/Wall Mount
Application Scenarios
WISP CPE, Data transmission and Long range video surveillance
Frequency Range
5GHz
Standard&Protocol
IEEE 802.11a/n
Private TDMA Protocol
TD-MAX
Maximum wireless speed
300Mbps
Interface
1*10/100Mbps Ethernet Port
Antenna
Antennas Gain:14dbi
Antenna Beamwidth:Horizontal: 30° Vertical: 30°
Reset Button
1
DC Jack
1
Power Consumption
8.5W
Waterproof Level
IP64
LED indicator
PoE/LAN,LED1,LED2,LED3
Power Method
24V0.5A Passive PoE
Lightning Protection
6000V
Passive PoE power supply
Passive power over ethenet via PoE/LAN ( 4,5pins
-7,8pins)
Voltage range: 21-25V DC
Reception Sensitivity
MCS0: -96dbm
MCS7: -72dbm
Operating Mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
SSID Isolation
Support
Channel
10/20/30/40MHz
Client Limitation For SSID
Support
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmit Power
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge
Support
VLAN Tagging for SSID
Support
DHCP Server
Support
VPN Pass-through
PPTP,L2TP
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Dynamic DNS
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time&Date Setting
Support
Firmware Upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
Syslog
Support
Managed By Controller
PC Software -- CPE Assistant
Package Content

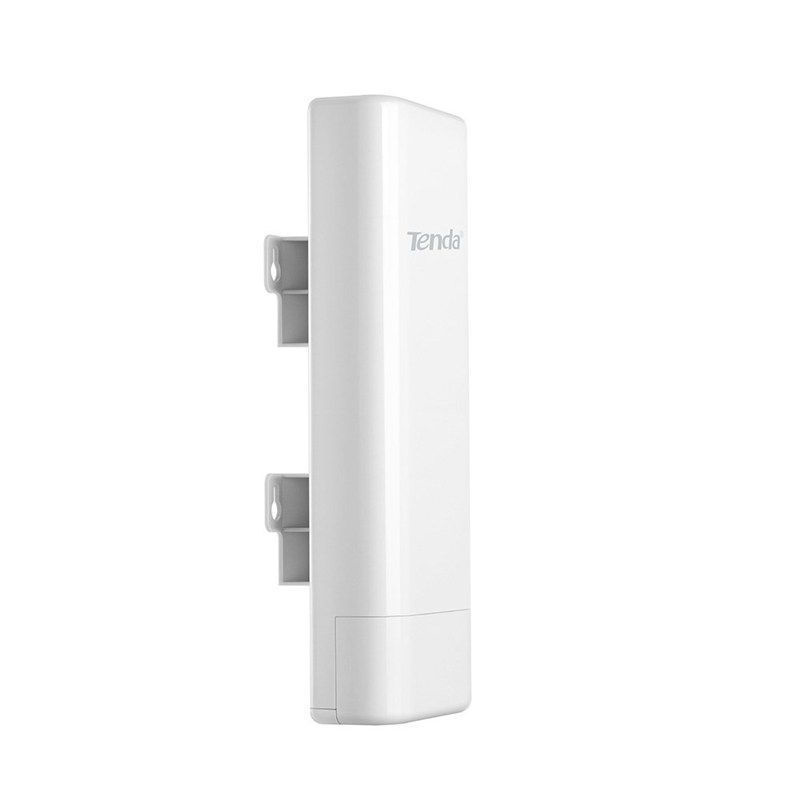

1*5km Point to Point Outdoor CPE O4
1*PoE Power Adapter
1*Quick Installation Guide
Temperature
Operating Temperature:-30℃ ~ 60℃
Storage Temperature:-40℃ ~ 70℃
Humidity
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~90% non-condensing
Default Settings
Default login IP:192.168.2.1
Default Login Username:admin
Default Login Password:admin
Certification
FCC/CE/RoHS
